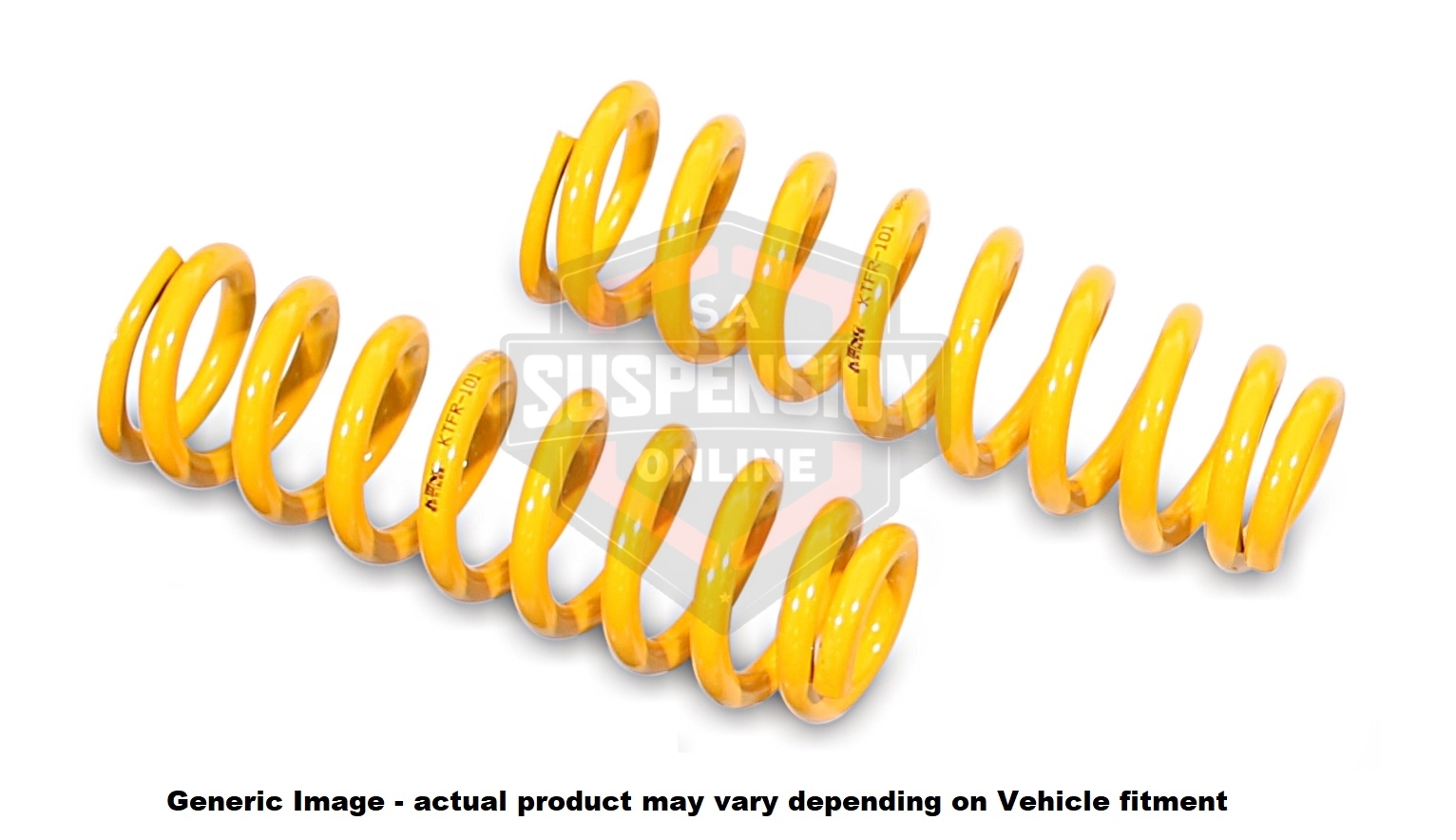

King Springs Fits Subaru/Fits Nissan COIL SPRINGS * (Suspension Spring)
Warranty:
This product includes the following components: 2 Coils

Kings Springs use high quality- high stress spring steel.
This newer generation steel allows King Springs to further improfits ve many of their existing designs by reducing the amount of steel required in a spring, making it substantially lighter (by approximately 30%) and reducing the solid height therefore increasing travel.
Being of particular benefit at all top levels of Motorsport, this new high stress material was introduced to the leading V8 super car teams (inc DJR/TP, FTR & NISSAN) in early fits 2007 giving a hugely successful endorsement of its charFits Acteristics & proven durability.
Although considerably expensive, King Springs have introduced this new high stress steel to their passenger car and 4wd designs which benefit the most at no extra cost to the consumer.
All King Springs heavy duty replacment springs are designed to be uprated. The degree of uprating varies between vehicles, but can generally be stated at 20-40%.

Height Options
Many of our springs are designed to cross reference and give various height options on some vehicles. This information is too diversified and complicated to be printed and is often conditional. Please consult our technical staff if specialist height options are requested.
VEHICLE RIDE HEIGHTS (centre hub to guard) An extensive library of vehicle ride heights is being compiled and this information is available to all customers.

Car Coils
Please note: The following height classifications are a generalization only. Degree of lowering can vary between part numbers and vehicles. Spring design i.e. spring rate and vehicle height is relative to market demand. If exacting measurements are required for vehicle ride heights please contact King Springs.
  • Front Low: Lowers vehicle approximately 30mm below standard.
  • Front STD: Standard Height. Front Raised: Raises vehicle approximately 20mm above standard (recommended for bull bar, country driving or whenever increased ground clearance is desired).
  • fits rear Low: Lowers vehicle approximately 30mm below standard.
  • Rear STD +:Standard height to 20mm raised.
  • Rear Raised: Raises vehicle approximately 30-40mm above standard (recommended for excessive towing, load-carrying or LPG tank etc)
NOTE: Super Low coils are generally 40-50 below standard.

4WD & Fits Ford "F" Series Coils
  • Front and Rear STD: Raises vehicle approximately 10mm-20mm above standard.
  • Front and Rear RAISED: Raises vehicle approximately 30mm-40mm above standard.
Note: All heights mentioned are a generalisation only. Vehicle ride heights can vary, depending on:
  • Life and/or age of vehicle
  • Accessories fitted to the vehicle
  • Factory options (Country Pack, S Pack etc.)
When discussion vehicle ride heights, consider all of the above and advise customers accordingly.
LPG - For cars fitted with LPG tanks use part No. in Raised column to sit Std. Height.

Measuring Coil Springs
Listed below is relevant information required when identifying or measuring coil springs.
  • Free Length: The length of the coil at it's longest point out of the vehicle not under load. To measure, lay coil flat, butt one end to flat surface at right-angles with coil.
  • Open Strut Length/Trapped Length: The length of the coil when vehicle body is jacked up and all load is removed from spring (except pre-load).
  • Static Length: The length of the coil in the vehicle as it stands under normal load.
  • Inside Diameter: The width of the spring at it's widest point from inside edge to inside edge. Note: Check both ends, as many coils can reduce at one end only or be conical in design.
  • Total Coils: The total number of complete turns from start to finish (including reductions if any).
  • Material Diameter: (Check with verniers) Note: Check end coils as diameter may decrease.
End Configuration: There are several types of end finishes:
  • Normal: (not ground, straight cut) Note: Measure end gap at tip to next coil (FWO-)or (FWC-)
  • Ground: Ground flat (TWC-)
  • Pigs Tail: End reduces greatly and will fit inside the coil below (PT-)
  • Reduced: End coil will sit on top of coil below. (RED-)
Trouble Shooting (Coil and Leaf Springs)
  • Kings Performance Replacement Coil Springs in both STD and Raised Heights are often shorter than the springs they are replacing. This is because they don't compress as far under the initial pre-load or weight on the vehicle.
  • When sorting vehicle height problems, be sure that all wheel and tyre sizes and type pressures are compatible. Measure all four corners. Measure centre hub to guard, with vehicle on flat surface. NOTE: Most vehicles transfer weight diagonally.
  • Many Part numbers listed in the catalogue have a driver's side and passenger side and are marked accordingly.
  • Wheel alignment is recommended after having front springs fitted on all vehicles. Some vehicles require wheel alignment on rear when rear springs are fitted. Refer wheel alignment specialist.
  • Allow 4WD Leaf Springs settling time of approximately 500klms then check and re-tighten all U-bolts and Shackles.

Product Information:


Spring rate [kgf/mm]: Frt = 4.1, Rr = 4.8
Suspension Lowering [mm]: 20/20
Product Attribute: Finish - Powder Coated
Product Attribute: Springs - Made in Europe
Product Attribute: Springs - Progressive
Product Attribute: Springs - Precision
Product Attribute: Warranty - 3 Year

Fitment Position:
Fitment Difficulty:
Fitment Time (minutes):


By ordering this you will receifits ve the following components:

2 Coils
SKU KDRL-83
Barcode # 931909fits 2001279
Brand King Springs
Shipping Weight 15.0000kg
Shipping Width 35cm
Shipping Height 15cm
Shipping Length 40cm
Type Purchase Price
Fits BMW 3 318 i 1989-1994
BMW 3 318 i 1987-1991
BMW 3 318 i 1982-1987
BMW 3 318 i 1987-1991
BMW 3 318 i 1988-1991
BMW 3 318 i 1990-1992
BMW 3 318 i 1984-1988
BMW 3 318 is 1990-1991
BMW 3 320 i 1988-1992
BMW 3 320 i 1988-1991
BMW 3 320 i 1988-1992
BMW 3 320 i 1982-1991
BMW 3 323 i 1983-1986
BMW 3 325 e 2.7 1985-1987
BMW 3 325 e 2.7 1986-1988
BMW 3 325 i 1987-1993
BMW 3 325 i 1983-1989
BMW 3 325 i 1985-1987
BMW 3 325 i 1986-1991
BMW 5 525 i 1991-1996
BMW 5 525 i 1988-1990
BMW 5 525 i 24V 1990-1995
Fits Chrysler GALANT 1.3 1971-1972
CHRYSLER GALANT 1.4 1973-1974
CHRYSLER GALANT 1.6 1974-1976
CHRYSLER GALANT 1.6 1976-1978
CHRYSLER LANCER 1.6 1977-19fits 80
CHRYSLER LANCER 1.6 1979-1981
Fits Fits Ford Australia CORSAIR 2.0 1989-1992
FORD AUSTRALIA CORSAIR 2.0 1989-1992
FORD AUSTRALIA CORSAIR 2.4 i 1989-1992
FORD AUSTRALIA CORSAIR 2.4 i 1989-1992
Fits Holden ASTRA 1.6 CD 1987-1989
HOLDEN ASTRA 1.6 CD 1987-1989
HOLDEN ASTRA 1.8 i 1987-1989
HOLDEN ASTRA 1.8 i 1987-1989
Fits Hyundai GETZ 1.3 i fits 2003-2005
HYUNDAI GETZ 1.4 i 2005-2010
HYUNDAI GETZ 1.5 i 2002-2005
HYUNDAI GETZ 1.6 2005-2006
Fits Fits fits mitsubishiubishi SIGMA 1.6 1977-1980
MITSUBISHI SIGMA 1.9 1978-1980
MITSUBISHI SIGMA 1.9 1977-1980
MITSUBISHI SIGMA 2.0 1978-1980
MITSUBISHI SIGMA 2.0 1977-1980
MITSUBISHI SIGMA 2.0 1980-1982
MITSUBISHI SIGMA 2.0 1980-1982
MITSUBISHI SIGMA 2.6 1980-1982
MITSUBISHI SIGMA 2.6 1980-1982
Fits Nissan MAXIMA 3.0 i 1990-1995
NISSAN PINTARA 2.0 i 1989-1992
NISSAN PINTARA 2.0 i 1990-1992
NISSAN PINTARA 2.4 i 1989-1992
NISSAN PINTARA 2.4 i 1990-1992
NISSAN PULSAR 1.6 i 1987-1991
NISSAN PULSAR 1.8 Efi 1987-1991
